Category |
Description |
| Model |

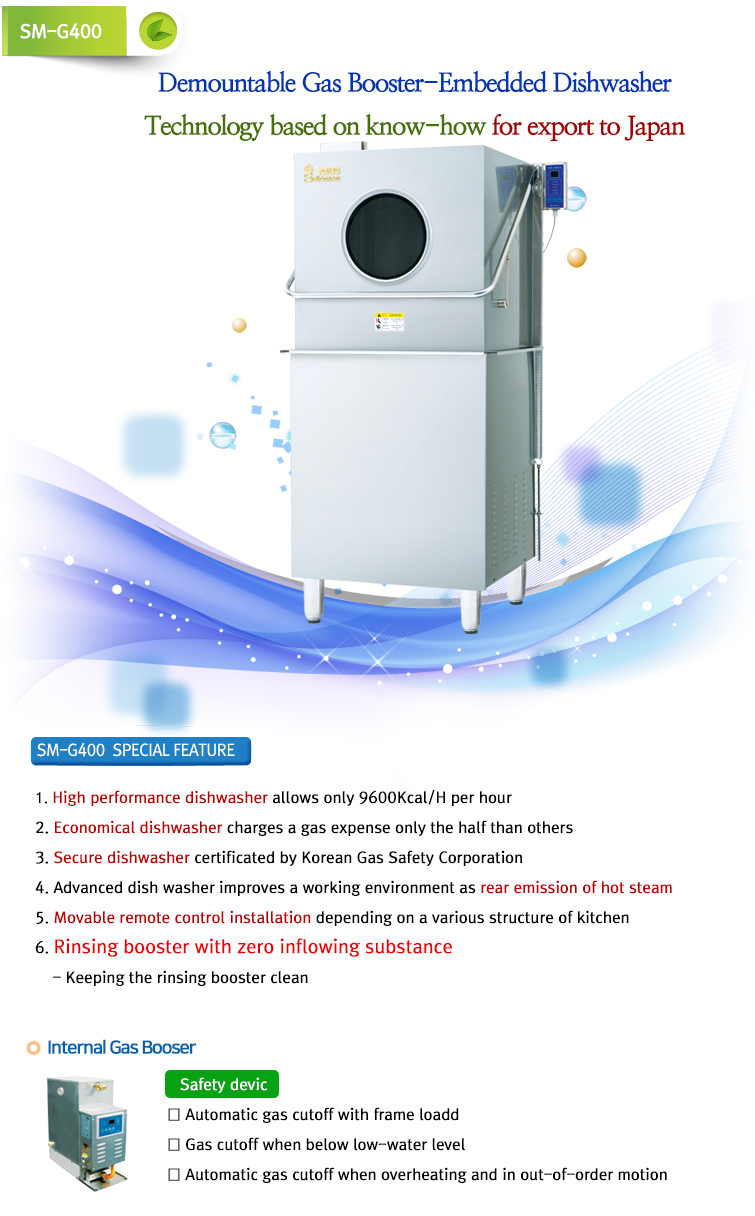

SM-G400 |
| Dimensions |
670(W)×615(L)×1420(H) |
| Type |
Door Type Gas Dishwasher |
Cleaning Method |
Up-and-down pressure sprayin |
Cleaning
Capacity
(max) |
Capacity |
Capacity Capacity (hr/rack) : 60 |
Cleaning Cycle
(sec/rack) |
Cleaning:60, Stand by:5,
Rinsing / Rinse:10 ( Total:65) |
| Cleaning Tank |
35ℓ/ 55℃~ 60℃ |
| Rinsing Tank
|
the amount used /usage : 3.3ℓ/ rack |
| 32.5ℓ/ 80℃~ 95℃ |
| Moter |
Cleaning : 1.2kW / Rinsing: 0.1kW |
Heating
Method |
Cleaning Tank |
Heater: 0.5kW |
| Rinsing Tank |
Gas Booster : 7.6kW(9600kcal/h) |
| Voltage |
220V×single-phase×50.60HZ |
| Volume |
Electric Consumption |
1.8kW |
| Gas Consumption |
LP-Gas : 0.82kg/h
Gas(13A) : 9600kcal/h |
each diameter
for access |
Hot water supply : G 1/2(15A)
Over flow : G 11/4(32A)
Drainage : Ø30(Drainage hose)
Gas : Rc 1/2(15A) |
